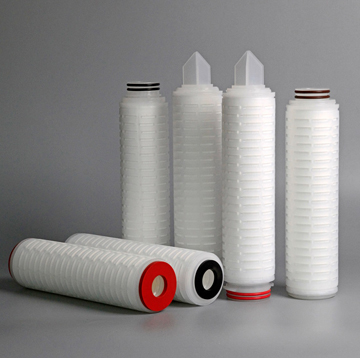

MicroPES Series PES Filter Cartridges

Use: Used in Various Process Water and Process Fluid.
Content:
MicroPES filter cartridges are High Asymmetric Polyethersulfone (PES) pleated membrane filter which sealed by advanced thermal welding technology. Cartridges are free of binders, adhesives and surfactants.
? High flow rate and low pressure drop.
? High temperature resistance and wide chemical compatibility;
? All of plastic components tested pass USP VI - 121℃.
? All materials are FDA listed for food contact.
? Absolute rating / LRV>107.
? 100% Integrity tested.
? Electronics grade filter cartridges are flushed with Ultrapure Water.

Specification

Ordering Information

Filter Medium	High Asymmetric PES
Support	Thermal Consolidated PP Non Woven Material
Hardware	Polypropylene
Diameter	2.7″ (69 mm)
Length	10″, 20″, 30″and 40″
Filtration Area	Approximately 0.7m2
Minimum Bubble Point	0.1 μm: > 0.15 MPa in 60/40 IPA/Water 0.2 μm: > 0.30 MPa in Water 0.45 μm: > 0.20 MPa in Water
Maximum Differential Pressure	0.1 μm: 0.40 MPa at 25℃ 0.2 μm: 0.40 MPa at 25℃ 0.45 μm: 0.40 MPa at 25℃
Sterilization Temperature	Hot water: 85 ℃ Steam: 121℃ / 30min
Maximum Operating Temperature	85℃ / 0.2MPa
